KIT-4071-OP-FMK

CORE+ 4071 微型电影话筒套装

This microphone kit is made for film or TV productions where the microphone needs to be invisible.

产品详情

4071 Film Microphone Kit

We have collected our award-winning miniature microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.

Now available with CORE+ & MicroLock®.

CORE+ takes your miniature mic to the next level, neutralizing distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

Complete kit with mics and accessories

We have collected our award-winning miniature lavalier microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.

Used with the vast array of complimentary accessories, our miniature microphones are ideal for a broad range of applications. Whether reproducing the voice or an instrument in film, theater, television or other close-miking settings, these mics will not disappoint.

4071 Film Microphone Kit

This microphone kit is made for film or TV productions where the microphone needs to be invisible.

It contains a 4071 Omnidirectional Microphone, Presence Boost with our reinforced cable relief (pre-equalized for speech clarity). Also included are various microphone concealment fixtures, specially designed to solve both concealment and clothing noise problems.

The 4071 Omnidirectional Microphone, Presence Boost is an outstanding speech and vocal mic. It makes voice heard and intelligible. It is also resistant to moisture, extreme temperature change and humidity.

When recording voices from mic placement on a performer's body, no frequency below 100 Hz is attractive. For this reason, an acoustical low-cut has been incorporated in the mic capsule so the built-in preamplifier (and the wireless system) will have much larger headroom. Furthermore, it removes distant rumbling from cars, trains, airplanes, etc.

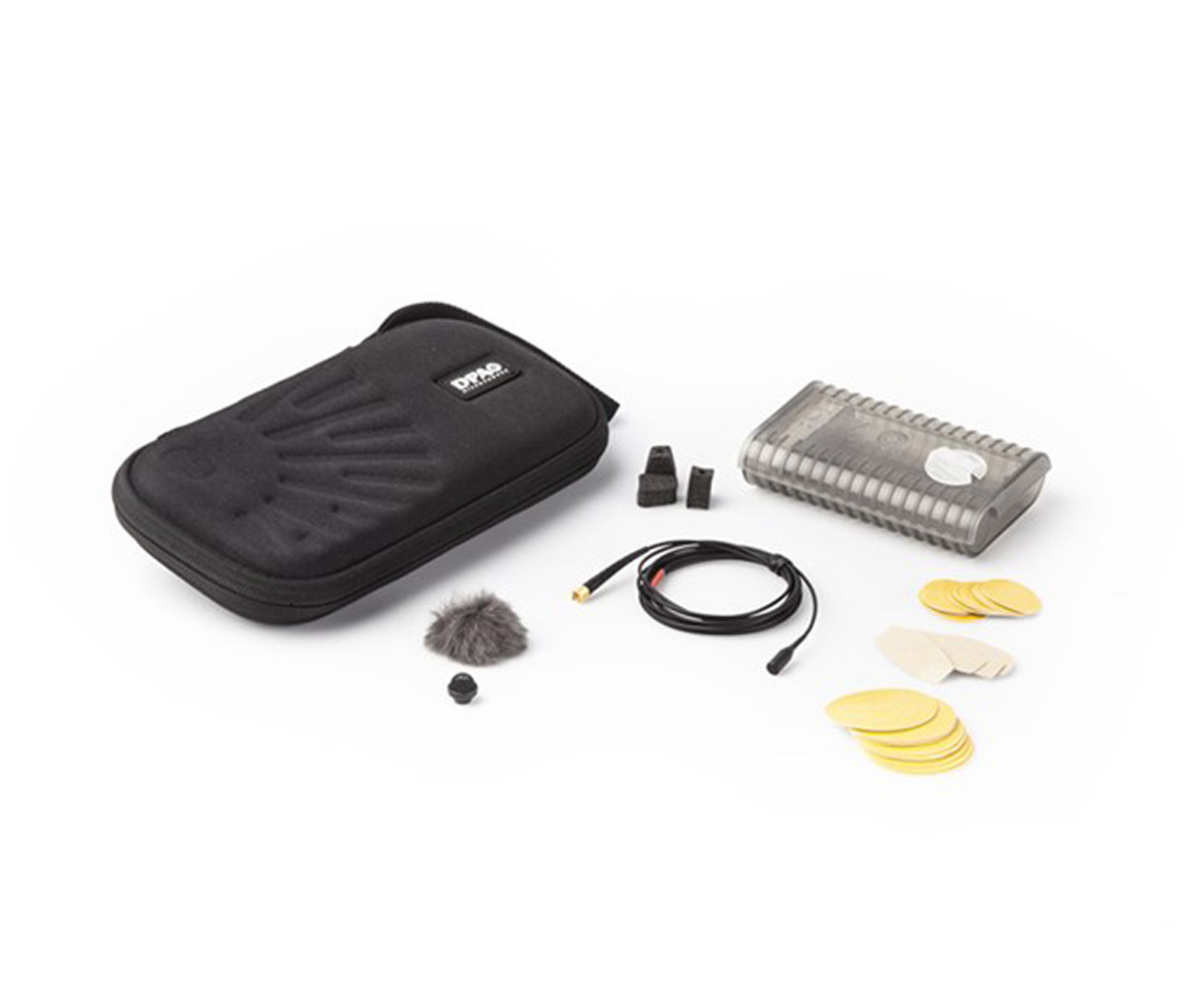

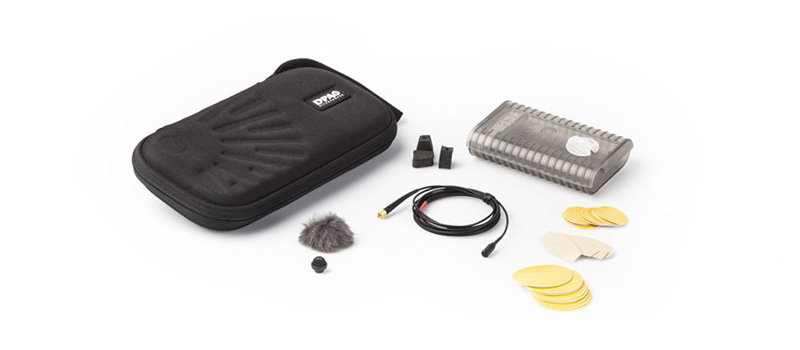

The Film Microphone Kit is delivered in a sturdy case with a transparent lid. Inside there is room for the microphone, one or more adapters and various microphone concealment fixtures.

技术参数
Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser
Frequency response 20 Hz - 20 kHz
Effective frequency range ±2 dB 100 Hz - 15 kHz with typ. 5 dB soft boost at 4 - 6 kHz
Sensitivity, nominal, ±3 dB at 1 kHz 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 38 dB (max. 40 dB)
Distortion, THD < 0.5% 133 dB SPL RMS, 136 dB SPL peak
Distortion, THD < 1% 136 dB SPL RMS, 139 dB SPL peak
Dynamic range Typ. 111 dB
Max. SPL, THD 10% 144 dB SPL peak
Rated output impedance 30 - 40 Ω
Cable drive capability Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power supply (for full performance) For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector MicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Weight 7.5 g (0.26 oz) incl. Cable and MicroLock connector
Microphone diameter 5.4 mm (0.21 in)
Microphone length 17 mm (0.67 in)
Cable length 1.8 m (5.9 ft)
Polarity Positively increasing sound pressure produces positive going voltage on MicroLock pin
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
Colors Black, Beige, Brown, White
