KIT-4060-OP-IMK

CORE+ 4060 微型乐器话筒套装

This kit contains a 4060 Miniature Omnidirectional Microphone, Normal SPL with our reinforced cable relief and a XLR Adapter DAD6001-BC and a selection of our unique mounting accessories. The kit is designed to use as a close-miking solution for a wide variety of musical instruments.

产品详情

4060 Series Instrument Microphone Kit

We have collected our award-winning miniature microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.

  • Extremely rugged and reliable
  • Exceptional audio quality
  • Low noise and high sensitivity
  • Large selection of accessories
  • Modular adapter system fits most professional wireless systems

Complete kit with mics and accessories

We have collected our award-winning miniature lavalier microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.

Used with the vast array of complimentary accessories, our miniature microphones are ideal for a broad range of applications. Whether reproducing the voice or an instrument in film, theater, television or other close-miking settings, these mics will not disappoint.

4060 Instrument Microphone Kit

This kit contains a 4060 Miniature Omnidirectional Microphone, Normal SPL with our reinforced cable relief and a XLR Adapter DAD6001-BC and a selection of our unique mounting accessories. The kit is designed to use as a close-miking solution for a wide variety of musical instruments.

This mic offers a very clean, detailed and natural sound quality. This leaves it up to the user to decide on the correct placement to achieve the desired timbre.

The kit is perfect for studio use or amplification for live use.

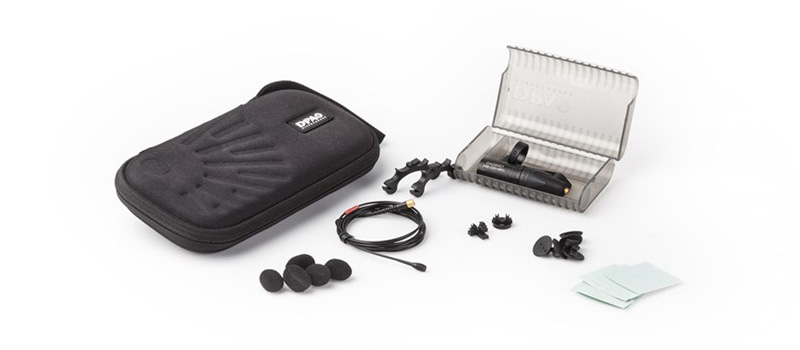

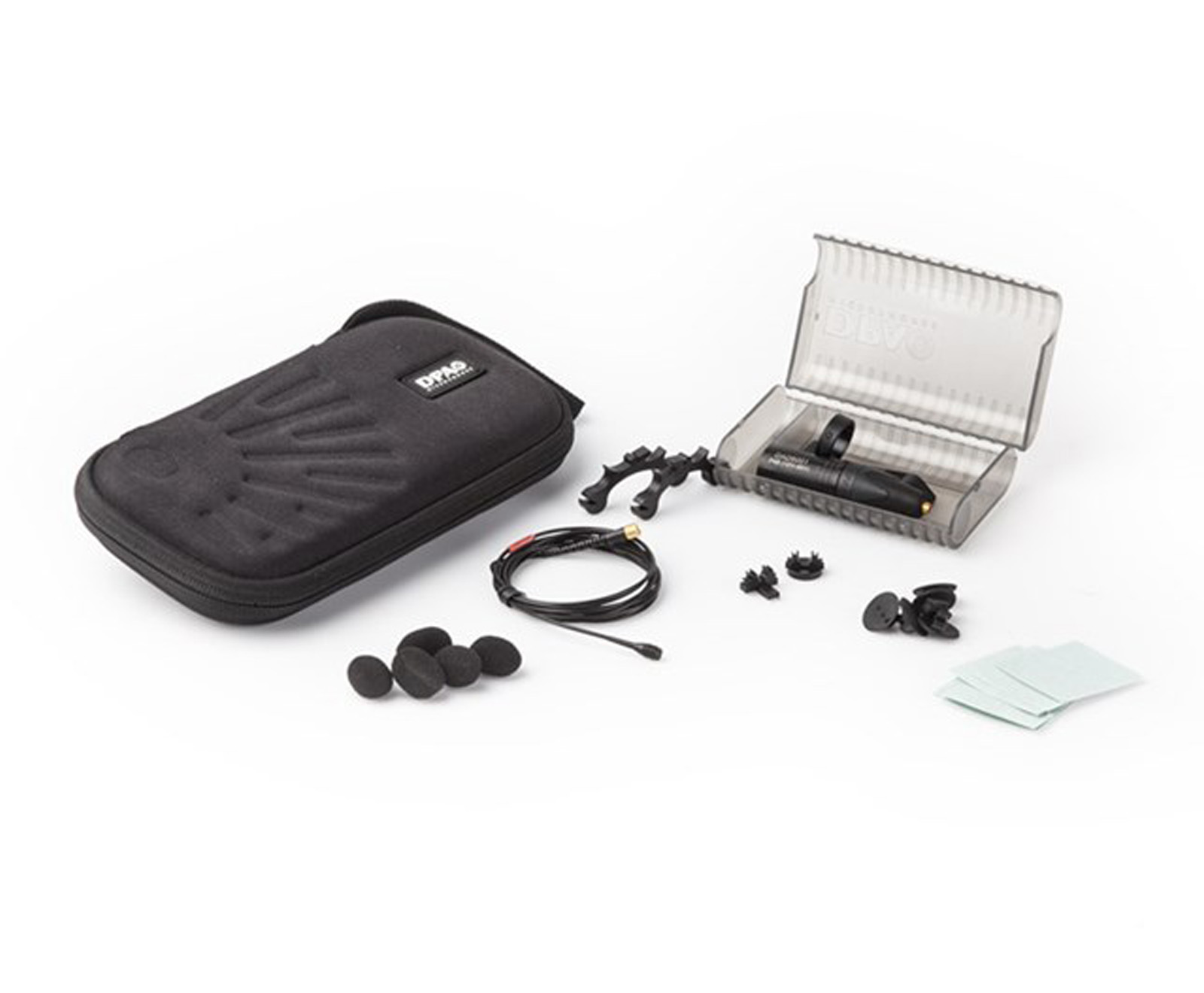

There are many accessories included in the kit. It contains holders for strings, universal surface mounts with double-sided tape, a magnet mount and foam windscreens.

4061 Instrument Microphone Kit

Similar to the 4060 Instrument Microphone Kit, this kit is designed to use as a close-miking solution for a wide variety of musical instruments. The 4061 Miniature Omnidirectional Microphone, Loud SPL offers a very clean, detailed and natural sound quality. This leaves it up to the user to decide on the correct placement to achieve the desired timbre. The mic can handle 144 dB peak before clipping, allowing the microphone to be used even for snare drums, guitar/bass speaker cabinets or other high SPL sound sources.

This kit is also perfect for studio use or amplification for live use. There are many accessories included in the kit. It contains holders for strings, universal surface mounts with double-sided tape, a magnet mount and foam windscreens.

技术参数
Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser
Frequency response 20 Hz - 20 kHz
Effective frequency range ±2 dB Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz 20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 35 dB (max. 38 dB)
Distortion, THD < 0.5% 128 dB SPL RMS, 131 dB SPL peak
Distortion, THD < 1% 129 dB SPL RMS, 132 dB SPL peak
Dynamic range Typ. 106 dB
Max. SPL, THD 10% 134 dB SPL peak
Rated output impedance 30 - 40 Ω
Cable drive capability Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power supply (for full performance) For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector MicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Weight 7.5 g (0.26 oz) incl. Cable and MicroLock connector
Microphone diameter 5.4 mm (0.21 in)
Microphone length 12.7 mm (0.5 in)
Cable length 1.8 m (5.9 ft)
Polarity Positively increasing sound pressure produces positive going voltage on MicroLock pin
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
Sensitivity selection tolerance (at 1 kHz) ±1.5 dB
Colors Black, Beige, Brown, White
