4060 Series Stereo Microphone Kit
We have collected our award-winning miniature microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.
Now available with CORE+ & MicroLock®.
CORE+ takes your miniature mic to the next level, neutralizing distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

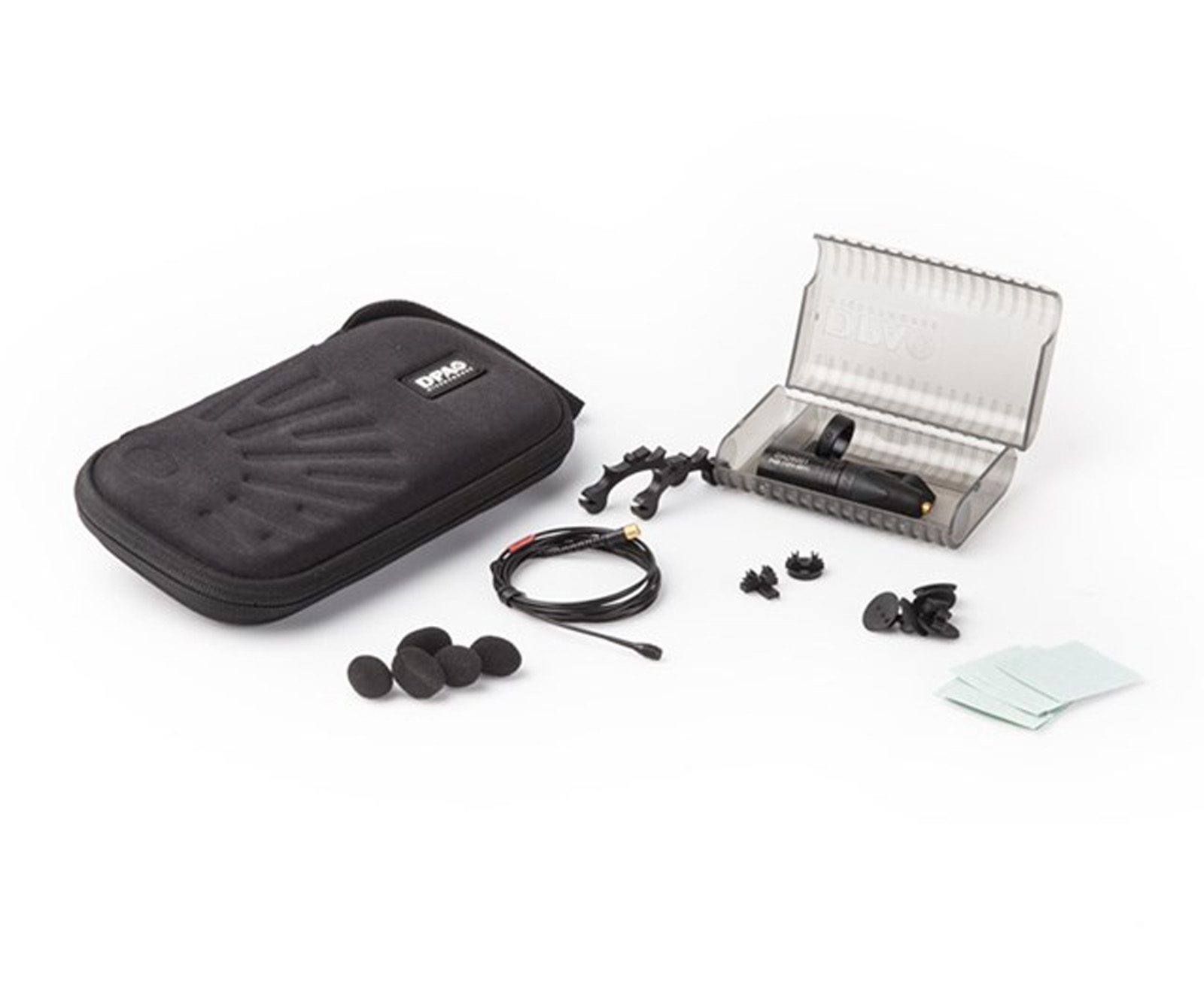

Complete kit with mics and accessories
4060 Stereo Microphone Kit
This Stereo Microphone Kit is a cost-effective and flexible stereo recording solution aimed at project studios and for discreet mic setup on stage. It contains a complete stereo pair; two handpicked omnidirectional condenser microphones, selected on sensitivity within ±1.5 dB.
It combines two 4060 Miniature Omnidirectional Microphone, Normal SPL, with a variety of mounting accessories. These include the BLM6000 Boundary Layer Mount, which can be used in conjunction with our 4060, 4061, 4062 and 4063 Miniature Microphones to place on a reflective boundary such as a floor, wall, ceiling, piano lid etc. This enables the mics to capture the ambient sound of the area. The sound captured from this “pressure zone” has higher sensitivity, clarity and intelligibility compared to the sound captured from the "free air". This solution serves as a kind of acoustical zoom.
There are many accessories included in the kit. One of them is the DMM0007 Universal Surface Mount. This mount allows all kinds of instruments, from acoustic guitar through grand piano and drums, to be mounted in the best-sounding position. The mount uses special non-marking adhesive discs for attachment.
| Directional pattern | Omnidirectional |
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB | Soft boost grid |
| Sensitivity, nominal, ±3 dB at 1 kHz | 6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 38 dB (max. 40 dB) |
| Distortion, THD < 0.5% | 133 dB SPL RMS, 136 dB SPL peak |
| Distortion, THD < 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic range | Typ. 111 dB |
| Max. SPL, THD 10% | 144 dB SPL peak |
| Rated output impedance | 30 - 40 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD6001-BC |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | MicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack |
| Weight | 7.5 g (0.26 oz) incl. Cable and MicroLock connector |
| Microphone diameter | 5.4 mm (0.21 in) |
| Microphone length | 12.7 mm (0.5 in) |
| Cable length | 1.8 m (5.9 ft) |
| Polarity | Positively increasing sound pressure produces positive going voltage on MicroLock pin |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Sensitivity selection tolerance (at 1 kHz) | ±1.5 dB |
Directional pattern: Omnidirectionalspecial-dmtPrinciple of operation: Pressurespecial-dmtCartridge type: Pre-polarized condenserspecial-dmtFrequency response: 20 Hz - 20 kHzspecial-dmtEffective frequency range ±2 dB: Soft boost gridspecial-dmtSensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Paspecial-dmtEquivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))special-dmtEquivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)special-dmtDistortion, THD < 0.5%: 133 dB SPL RMS, 136 dB SPL peakspecial-dmtDistortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peakspecial-dmtDynamic range: Typ. 111 dBspecial-dmtMax. SPL, THD 10%: 144 dB SPL peakspecial-dmtRated output impedance: 30 - 40 Ωspecial-dmtCable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapterspecial-dmtPower supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD6001-BCspecial-dmtCurrent consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapterspecial-dmtConnector: MicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jackspecial-dmtWeight: 7.5 g (0.26 oz) incl. Cable and MicroLock connectorspecial-dmtMicrophone diameter: 5.4 mm (0.21 in)special-dmtMicrophone length: 12.7 mm (0.5 in)special-dmtCable length: 1.8 m (5.9 ft)special-dmtPolarity: Positively increasing sound pressure produces positive going voltage on MicroLock pinspecial-dmtTemperature range: -40°C to 45°C (-40°F to 113°F)special-dmtRelative humidity (RH): Up to 90%special-dmtSensitivity selection tolerance (at 1 kHz): ±1.5 dBspecial-dmt
