4063-OL-C-B00

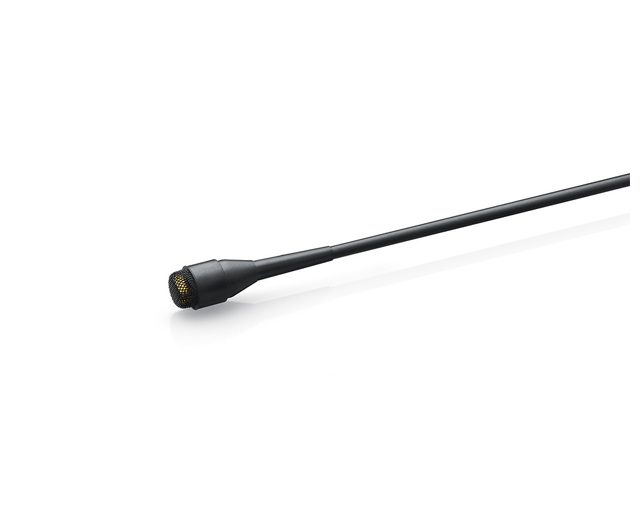

d:screet™ 4063 微型电容话筒,全指向,高声压,直流,黑色

Directional pattern	Omnidirectional
Principle of operation	Pressure
Cartridge type	Pre-polarized condenser
Frequency range	20 Hz - 20 kHz
Frequency range ±2 dB	Soft boost grid 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid
Sensitivity, nominal, ±3 dB at 1 kHz	1 mV/Pa -60 dB re. 1 V/Pa
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)	Typ. 61 dB(A)
Total harmonic distortion (THD )	< 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
Dynamic range Typ	90 dB
Max. SPL peak before clipping	154 dB
Output impedance	30 - 40 Ω
Cable drive capability	Up to 300 m (984 ft)
Power supply (for full performance) For wireless systems	Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099
Connector	MicroDot
Color	Black or beige
Cable length	1.8 m (5.9 ft)
Polarity	Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity	(RH) Up to 90%
Directional pattern	Omnidirectional
Principle of operation	Pressure
Cartridge type	Pre-polarized condenser
Frequency range	20 Hz - 20 kHz
Frequency range, ±2 dB	Soft boost grid
Sensitivity, nominal, ±3 dB at 1 kHz	6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 38 dB (max. 40 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)	Typ. 68 dB(A)
Total harmonic distortion (THD)	- Legacy < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
Total harmonic distortion (THD)	- CORE < 1% THD up to 135 dB SPL peak
Dynamic Range	- Legacy Typ. 97 dB
Dynamic Range	- CORE Typ. 109 dB
Max. SPL, peak before clipping	138 dB
Output impedance	30 - 40 Ω
Cable drive capability	Up to 300 m (984 ft)
Power supply (for full performance) For wireless systems	Min. 3 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099
Connector	MicroDot
Color	Black, beige, brown or white
Weight	7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter	5.4 mm (0.21 in)
Microphone length	12.7 mm (0.5 in)
Cable length	1.8 m (5.9 ft)
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity	(RH) Up to 90%

Directional pattern:Omnidirectionalspecial-dmtPrinciple of operation:Pressurespecial-dmtCartridge type:Pre-polarized condenserspecial-dmtFrequency range:20 Hz - 20 kHzspecial-dmtFrequency range ±2 dB:Soft boost grid 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost gridspecial-dmtSensitivity, nominal, ±3 dB at 1 kHz:1 mV/Pa -60 dB re. 1 V/Paspecial-dmtS/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) :Typ. 61 dB(A)special-dmtTotal harmonic distortion (THD ):< 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sinespecial-dmtDynamic range Typ:90 dBspecial-dmtMax. SPL peak before clipping:154 dBspecial-dmtOutput impedance:30 - 40 Ωspecial-dmtCable drive capability:Up to 300 m (984 ft)special-dmtPower supply (for full performance) For wireless systems:Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099special-dmtConnector:MicroDotspecial-dmtColor:Black or beigespecial-dmtCable length:1.8 m (5.9 ft)special-dmtPolarity:Positively increasing sound pressure produces positive going voltage on MicroDot pinspecial-dmtTemperature range:-40°C to 45°C (-40°F to 113°F)special-dmtRelative humidity:(RH) Up to 90%special-dmtDirectional pattern:Omnidirectionalspecial-dmtPrinciple of operation:Pressurespecial-dmtCartridge type:Pre-polarized condenserspecial-dmtFrequency range:20 Hz - 20 kHzspecial-dmtFrequency range, ±2 dB:Soft boost gridspecial-dmtSensitivity, nominal, ±3 dB at 1 kHz:6 mV/Pa; -44 dB re. 1 V/Paspecial-dmtEquivalent noise level, A-weighted:Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))special-dmtEquivalent noise level, ITU-R BS.468-4:Typ. 38 dB (max. 40 dB)special-dmtS/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):Typ. 68 dB(A)special-dmtTotal harmonic distortion (THD):- Legacy < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sinespecial-dmtTotal harmonic distortion (THD):- CORE < 1% THD up to 135 dB SPL peakspecial-dmtDynamic Range:- Legacy Typ. 97 dBspecial-dmtDynamic Range:- CORE Typ. 109 dBspecial-dmtMax. SPL, peak before clipping:138 dBspecial-dmtOutput impedance:30 - 40 Ωspecial-dmtCable drive capability:Up to 300 m (984 ft)special-dmtPower supply (for full performance) For wireless systems:Min. 3 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099special-dmtConnector:MicroDotspecial-dmtColor:Black, beige, brown or whitespecial-dmtWeight:7.5 g (0.26 oz) incl. Cable and MicroDot connectorspecial-dmtMicrophone diameter:5.4 mm (0.21 in)special-dmtMicrophone length:12.7 mm (0.5 in)special-dmtCable length:1.8 m (5.9 ft)special-dmtTemperature range:-40°C to 45°C (-40°F to 113°F)special-dmtRelative humidity:(RH) Up to 90%special-dmt

4063-OL-C-B00

d:screet™ 4063 微型电容话筒,全指向,高声压,直流,黑色

技术参数

Directional pattern	Omnidirectional
Principle of operation	Pressure
Cartridge type	Pre-polarized condenser
Frequency range	20 Hz - 20 kHz
Frequency range ±2 dB	Soft boost grid 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid
Sensitivity, nominal, ±3 dB at 1 kHz	1 mV/Pa -60 dB re. 1 V/Pa
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)	Typ. 61 dB(A)
Total harmonic distortion (THD )	< 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
Dynamic range Typ	90 dB
Max. SPL peak before clipping	154 dB
Output impedance	30 - 40 Ω
Cable drive capability	Up to 300 m (984 ft)
Power supply (for full performance) For wireless systems	Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099
Connector	MicroDot
Color	Black or beige
Cable length	1.8 m (5.9 ft)
Polarity	Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity	(RH) Up to 90%
Directional pattern	Omnidirectional
Principle of operation	Pressure
Cartridge type	Pre-polarized condenser
Frequency range	20 Hz - 20 kHz
Frequency range, ±2 dB	Soft boost grid
Sensitivity, nominal, ±3 dB at 1 kHz	6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 38 dB (max. 40 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)	Typ. 68 dB(A)
Total harmonic distortion (THD)	- Legacy < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
Total harmonic distortion (THD)	- CORE < 1% THD up to 135 dB SPL peak
Dynamic Range	- Legacy Typ. 97 dB
Dynamic Range	- CORE Typ. 109 dB
Max. SPL, peak before clipping	138 dB
Output impedance	30 - 40 Ω
Cable drive capability	Up to 300 m (984 ft)
Power supply (for full performance) For wireless systems	Min. 3 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099
Connector	MicroDot
Color	Black, beige, brown or white
Weight	7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter	5.4 mm (0.21 in)
Microphone length	12.7 mm (0.5 in)
Cable length	1.8 m (5.9 ft)
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity	(RH) Up to 90%
